Optional enrichment of cmi5 requests with context information

1 Initial Problem

In many situations, it is helpful to have more information about the context in which learning takes place. This is especially true for self-study learning modules. Does the learning take place in a (repeat) course? Is the data collected from learners or also from tutors, for example?

Contextual information is helpful for evaluation (formative/summative) and for supporting learners.
The following contextual information should be transferred:

The integration of the first two pieces of information has already been implemented with a plugin (though not for cmi5) and has proven effective in enriching the quality of statements. The recommendation for keywords is to have at least one for content description (decimal classification is advantageous) and one that indicates the anticipated level of difficulty. The qualitative enrichment of statements can be very useful for learning analytics.

Information on whether the users are learners or supervisors (e.g., tutors) is helpful for reporting on a widely used, large range of content in the field of accident prevention.

At the same time, this distinction provides a starting point for better support. When reporting is separate from the content itself, the results are often not easily recognizable. If, as a support provider, you can display reporting directly alongside the content, analysis is often much easier.

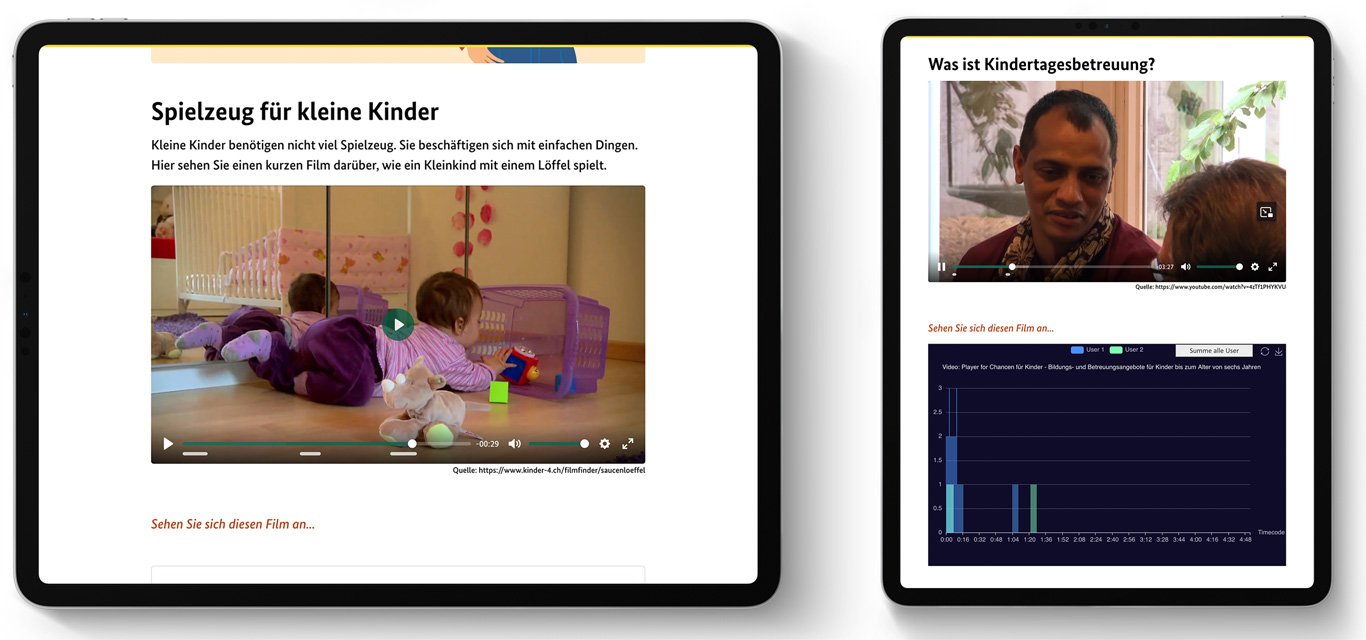

One example of this is the representation of video usage in the context of the content (left: learner's view, right: tutor's view):

2 Conceptual Summary

According to cmi5 (section 10), the LMS must create or update a JSON document before starting an Assignable Unit. This document is stored with the following PUT parameters:

The stateId parameter contains the JSON document, which is referred to as the LMS.LaunchData State Document. Example:

{
   "contextTemplate": {
      "contextActivities": {
         "grouping": [ILIAS_SYSTEM, ILIAS_COURSE, ILIAS_MODULE]
      },
      "extensions": {
         "https://www.ilias.de/xapi-extensions/isLearner": "true",
         "https://www.ilias.de/xapi-extensions/isSupervisor": "false"
      }
   }
}

Explanation of grouping:

● Grouping: Ilias system (additional)
○ Activity Type: http://id.tincanapi.com/activitytype/category
○ Contains a unique IRI of the Ilias system as an ID, e.g., https://vb56.example.com/release_8lab/goto.php?target=root_1&client_id=inno&obj_id_lrs=1
● Grouping: Ilias Course:
○ Activity Type: http://adlnet.gov/expapi/activities/course
○ Represents the unique identifier of the course in ILIAS to which the learner is assigned. A course here corresponds to a group of learners who have jointly enrolled in a learning program.
○ The value of the ID should be a valid IRI that uniquely identifies the course (e.g., https://vb56.example.com/release_8lab/goto.php?target=crs_95&client_id=inno&obj_id_lrs=349).
● Grouping: Ilias module
○ Activity Type: http://adlnet.gov/expapi/activities/module

Explanation of isLearner:
 Always set in the course or group if the role is set to member; outside the course/group: every user in the object is always a “learner” (unless the right “View learning progress of other users” is set).

Explanation of isSupervisor:
Depends on the right “View learning progress of other users”

It is the task of the content to use this information when generating statements.
TestCases only check the provision of context information.
In addition, context information on superordinate container objects (e.g., course) and keywords can be transmitted with a launched statement from ILIAS.

3 User Interface Modifications

3.1 List of Affected Views

3.2 User Interface Details

The settings form is extended by an additional checkbox for 'transmit context information to content'. In the byline it should also be emphasized that one of the pseudonymization options provided by ILIAS should generally be used.

3.3 New User Interface Concepts

no new interface concept

3.4 Accessibility Implications

no accessibilty implications

4 Additional Information

4.1 Involved Authorities

If this request is related to multiple components, please list both authorities for all related components.

4.2 Technical Aspects

See above in chap 2.

4.3 Privacy

 It should also be emphasized that one of the pseudonymization options provided by ILIAS should generally be used. Especially when a learning record store is not used itself. The privacy.md will be extended accordingly.

4.4 Security

no security relevant changes

4.5 Contact

Person to be contacted in case of questions about the feature or for funding offers:  Kohnle, Uwe [ukohnle]

4.6 Funding

Funding status and funding parties are listed in the block 'Status of Feature' in the right column of this page.

If you are interested to give funding for this feature, please get into contact with the person mentioned above as 'Contact'.

5 Discussion

6 Implementation

Feature has been implemented by Kohnle, Uwe [ukohnle]

6.1 Description and Screenshots

{ Description of the final implementation and screenshots if possible. }

6.2 Test Cases

Test cases completed at {date} by {user}

6.3 Privacy

Information in privacy.md of component: updated at {date} by {user} | privacy.md should be extended

6.4 Approval

Approved at {date} by {user}.
