KS-Entry: Scale Bar

1 Guideline

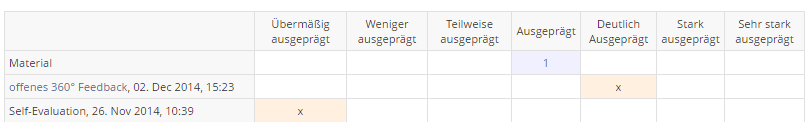

• DOM, LESS, JS / Screenshot*:

• PHP Class:
• PHP Example:
• External Library:
• Status of Entry: To be revised
• Status of Implementation: to be implemented
• Description*:
  • Purpose: Scale Bars inform about a score or target on a rank ordered scale in a visually appealing fashion.
  • Composition: Scale Bars MAY be used as an element of Reporting Panel.  The Scale Bar presents an ascending rank ordered scale with the scale values depicted as insividual areas. Scores or target ranges can be presented by "filling" the respective area.
  • Effect: Scale Bars are primarily presenting information. If scale / score are derived from an Accompanying documents can be downloaded.
  • Rival Elements: n.a.
• Background:
• Feature Wiki Reference:  http://www.ilias.de/docu/goto_docu_wiki_wpage_4314_1357.html
• Context*: Scale Bars are to be used in the Competence Management on the Personal Desktop.
• Rules:
  • Wording: Labels of scale values are presented inside the value area.
  • Style: Scores or target ranges are highlighted. The other scale values are rather pale.
• Relations:
  • Is A:
  • Must Use:
  • May Use:

2 Status

• Effective from release: { not approved yet | x.y }
• Approved by Jour Fixe at: { link to Jour Fixe agenda }

• Implementation status: { implemented completely | partly implemented | needs implementation }
• Funding for streamlining existing features: { name of organisation }
• Implementation of guideline: { all developers | name of responsible developer }

3 Components that are not compliant with the Guideline

• …

4 Discussion

Kiegel, Colin [kiegel] 2016-12-01 How would this scale bar look on mobile devices? IMO it would be desirable to have a one-column representation for small devices, where all possible values are stacked vertically instead.

JourFixe, ILIAS [jourfixe]: We highly appreciate this pull request. Please commit it to the trunk. The scale elements should be ordered horizontally for mobile use, too.
