Mediacast of Type Image Gallery

Page Overview

[Hide]

1 Initial Problem

Currently it is not possible to create descriptions for media objects in mediacasts and the download link is hardly readable.

  • In the list view a lot of properties are displayed only relevant to audio and video is shown.
  • In the tile view there is no way to provide important information like description.
The different media types are to be separated: Introduction of a Video Podcast-, Image Gallery- and Audio Podcast-type for mediacasts

List View with Images
Tile View with images
Image in not-KS-Modal

2 Conceptual Summary

Tab View

  • Media objects in the tab "Content>>View" should be displayed using the Kitchensink UI element  Deck of Cards. A Card shows the title, description and a download button.
  • Clicking upon an Image will open it in the KS Lightbox Modal that allows flipping through the Images.

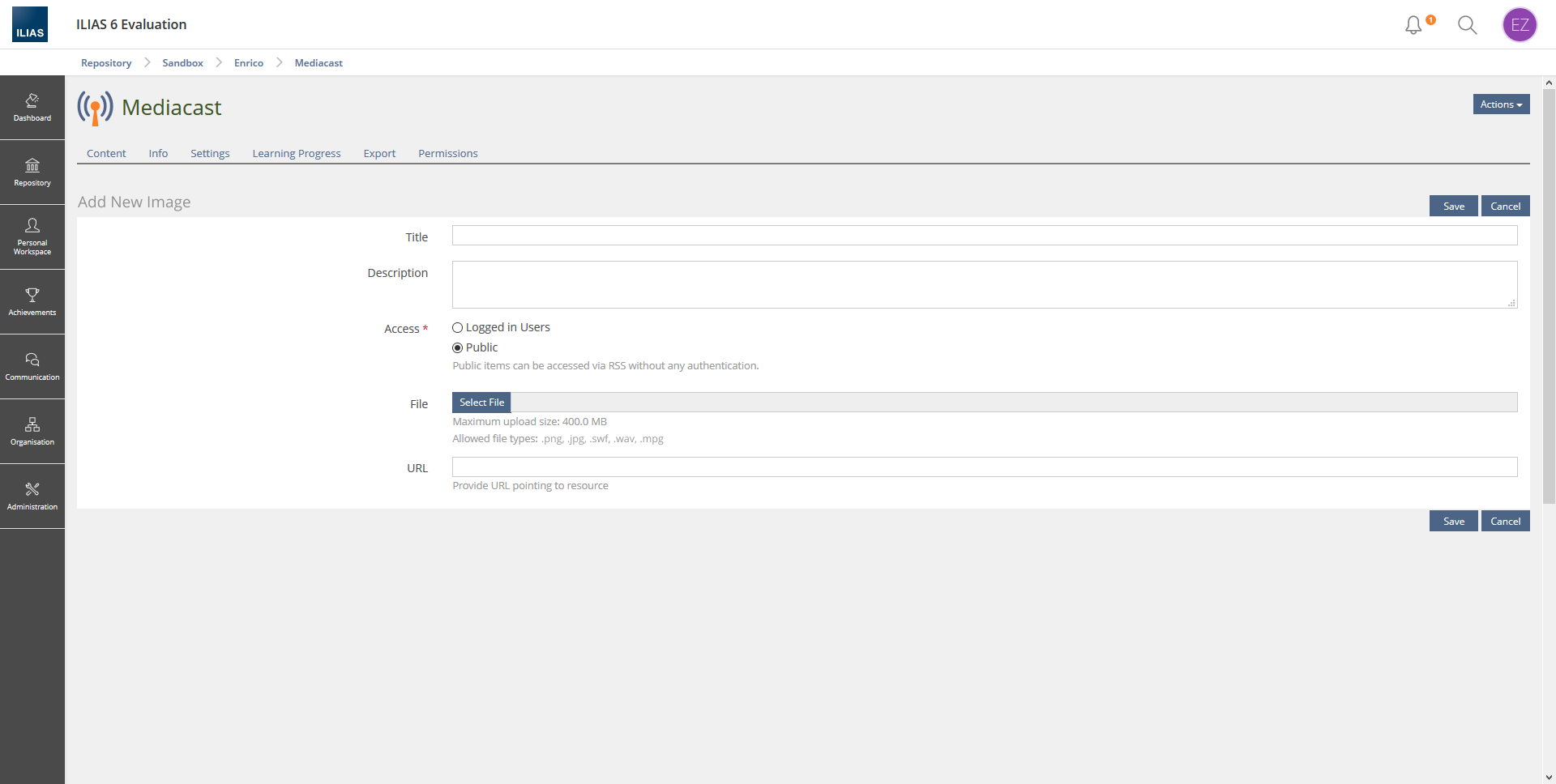

Tab Settings
  • The form is drastically simplified and adapted to the media type "Image".
  • The preview image is automatically generated from the uploaded file.
A bulk upload is introduced in a separate Feature Request.

3 User Interface Modifications

3.1 List of Affected Views

Mediacast >> Create Mediacast
Mediacast >> Content >> View
Mediacast >> Settings
All Mediacast Screens

3.2 User Interface Details

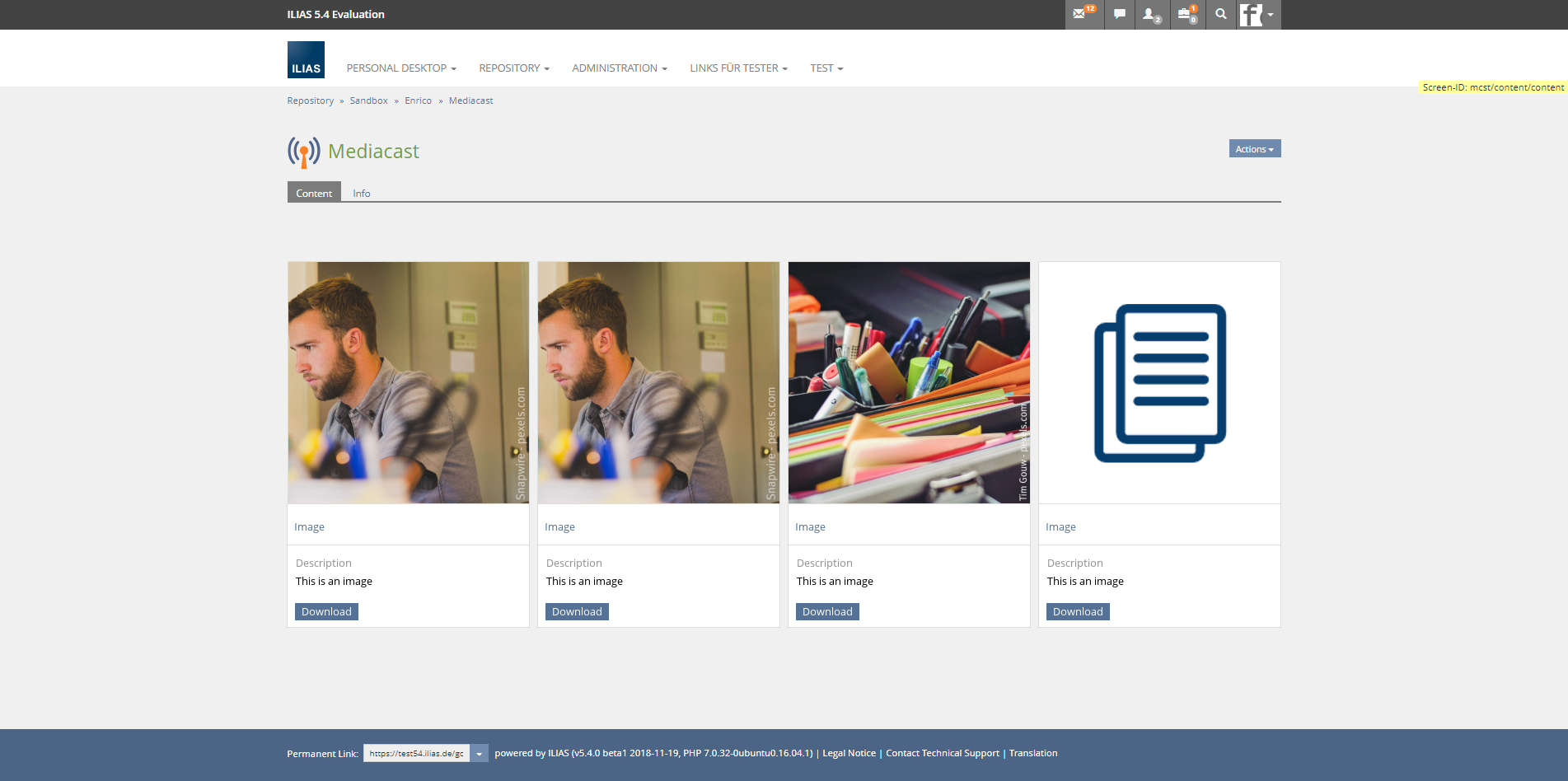

Tab "Mediacast>>Content>>View" with Deck of Cards
Image Presentation should use the KS-Lightbox Modal Example 4 Multiple Images

3.3 New User Interface Concepts

None.

We use the existing KS-Elements Deck of Cards and Lightbox Modal Example 4

4 Technical Information

No technical issues.

5 Privacy Information

See https://github.com/ILIAS-eLearning/ILIAS/blob/trunk/Modules/MediaCast/PRIVACY.md

6 Security Implications

We do not see any special security relevant changes.

7 Contact

8 Funding

If you are interest in funding this feature, please add your name and institution to this list.

  • …

9 Discussion

JourFixe, ILIAS [jourfixe], 03 AUG 2020 : We highly appreciate this suggestion and schedule the feature for ILIAS 7.

Kunkel, Matthias [mkunkel], 07 MAR 2022 : We highly appreciate this suggestion and re-schedule the feature for ILIAS 8.

10 Implementation

Test Cases

Test cases completed at 2022-01-14 byTödt, Alexandra [atoedt]

  • 49293 : Ansicht ändern: Bildergalerie
  • 49294 : Bilddatei hochladen
  • 49295 : Bilddatei per URL einbinden
  • 49296 : Bildddatei aus Medienpool wählen
  • 49450 : Durch Bilder blättern

Approval

Approved at 28.01.2022 by Koch, Karola [kkoch]

Last edited: 7. Mar 2022, 16:26, Kunkel, Matthias [mkunkel]
