Test Player: Kiosk-Mode (Exam View) for Page Layout Revision
Page Overview
[Hide]This page was created well after feature freeze for ILIAS 6. This is in agreement with the procedure for interface changes caused by the Page Layout Revision as permitted by the PM.
1 Initial Problem
The purpose of the current kiosk mode player used in the test object is to enable learners to write exams in a distraction free environment, at least with regarding ILIAS.
The Page Layout Revision (Desktop) makes it possible to move existing visual components to new locations while reusing the new layout elements.
2 Conceptual Summary
We suggest to arrange the existing visual elements of the kiosk mode player in the Test object as such:
- The title of the page is used to display the title of the Test.
- The logo of the installation is kept to keep visual identity of the installation.
- Compared to the kiosk mode in the learning sequence there are no Metabar Items. The kiosk mode in the test does not use X-Glyph, because the test is only left with the button "Finish the test".
- The breadcrumbs are empty.
- The mainbar displays the List of Questions as a slate. The standard main-bar items are not displayed to minimize distraction. The slate with theList of Questions can be opened and closed.
- Above the questions in the content area the remaining processing time of the test and an area that can contain information such as the name of the test participant, ILIAS test number, etc. is displayed.
3 User Interface Modifications
3.1 List of Affected Views
- Test >> Exam View
3.2 User Interface Details
![](./data/docu/mobs/mm_71507/KioskMode_Test.png?il_wac_token=ef5b0939595802bbccdf0a195141c3899117cf01&il_wac_ttl=5&il_wac_ts=1725755724)

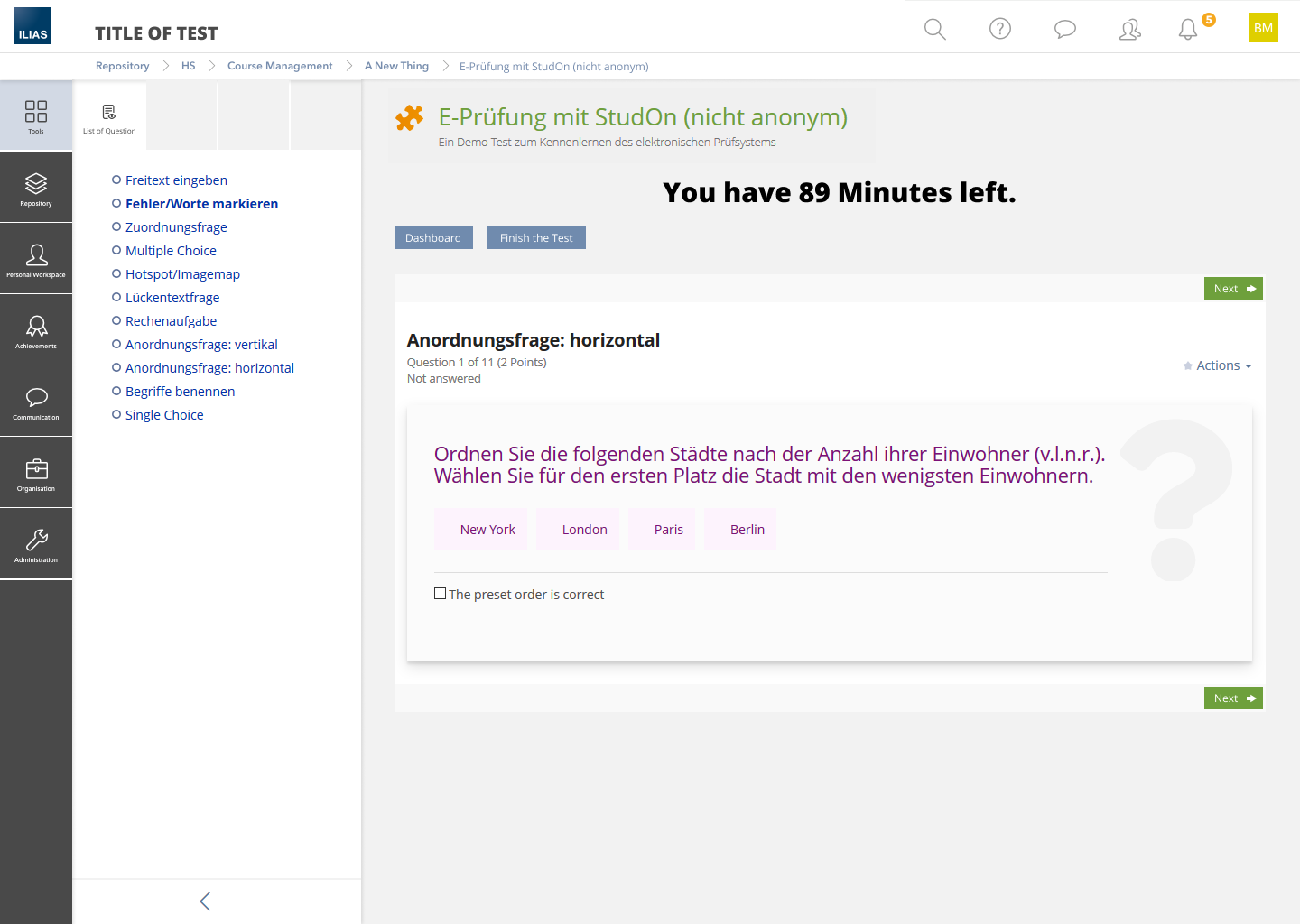

The List of Question is not only displayed in the Exam View. If a users open a test in which the Exam View is not activated, the List of Questions must be displayed in a Tools Slate. Since the question list should not behave differently depending on the view, it should also be transferred to a tool slate in the Exam View.
![](./data/docu/mobs/mm_71508/List_of_Question_Test.png?il_wac_token=ef5b0939595802bbccdf0a195141c3899117cf01&il_wac_ttl=5&il_wac_ts=1725755724)
![](./data/docu/mobs/mm_71509/KioskMode_Test.png?il_wac_token=ef5b0939595802bbccdf0a195141c3899117cf01&il_wac_ttl=5&il_wac_ts=1725755724)
3.3 New User Interface Concepts
none.
4 Technical Information
{The maintainer has to provide necessary technical information, e.g. dependencies on other ILIAS components, necessary modifications in general services/architecture, potential security or performance issues.}
5 Privacy Information
{ Please list all personal data that will need to be stored or processed to implement this feature. For each date give a short explanation why it is necessary to use that date. }
6 Contact
- Author of the Request: Zenzen, Enrico [ezenzen]
- Maintainer: Heyser, Björn [bheyser]
- Implementation of the feature is done by: {The maintainer must add the name of the implementing developer.}
7 Funding
If you are interest in funding this feature, please add your name and institution to this list.
- …
8 Discussion
Strassner, Denis [dstrassner], 18 NOV 2019: The Test Pass ID will then be displayed left justified?
Zenzen, Enrico [ezenzen], 20 NOV 2019: In my opinion the "Test Pass ID" is displayed below the name as in ILIAS 5.4 (see Mockup below the comment). The area highlighted by two dividing lines does not differ from ILIAS 5.4.
![](./data/docu/mobs/mm_71530/KioskMode_Test.png?il_wac_token=ef5b0939595802bbccdf0a195141c3899117cf01&il_wac_ttl=5&il_wac_ts=1725755724)
Strassner, Denis [dstrassner], 18 NOV 2019: Thx Enrico for the additional mockup. I agree with your suggestion.
JourFixe, ILIAS [jourfixe], 18 NOV 2019 : We highly appreciate this suggestion and schedule the feature for ILIAS 6 as part of the Page Layout Revision.
9 Implementation
{The maintainer has to give a description of the final implementation and add screenshots if possible.}
Test Cases
Test cases completed at {date} by {user}
- {Test case number linked to Testrail} : {test case title}
Approval
Approved at {date} by {user}.
Last edited: 18. Nov 2019, 15:42, Kunkel, Matthias [mkunkel]
