Use D&D-Fileupload for File-Versions

1 Initial Problem

Currently you can create new File-Objects by uploading the files using Drag&Drop. After that point, when uploading a new version of the file, there is no Drag&Drop solution.

2 Conceptual Summary

A FileUploadInputGUI which uses the refactored DropZones form the UI-Service und the File Upload Service. The Rendering of the Input will be implemented as the already accepted DR 5.1 - Issue 07: File Input on smartphones and tablets defines.

3 User Interface Modifications

3.1 List of Affected Views

• file/settings/
  • Replacement of the current ilFileUploadGUI with a new DragAndDrag-FileUpload

3.2 User Interface Details

Replacement of the current ilFileUploadGUI with a new DragAndDrag-FileUpload

3.3 New User Interface Concepts

The File-Upload-Input-GUI as described above has already been approved by the JF: DR 5.1 - Issue 07: File Input on smartphones and tablets

4 Technical Information

The Implementation can use:

• HTTP-Service: https://github.com/ILIAS-eLearning/ILIAS/pull/466
• File-Upload-Service: File Upload Service

5 Contact

• Author of the Request: Schmid, Fabian [fschmid]
• Maintainer: Schmid, Fabian [fschmid]
• Implementation of the feature is done by: Schmid, Fabian [fschmid]

6 Funding

If you are interest in funding this feature, please add your name and institution to this list.

• Technische Hochschule OWL
• Universität Bern

7 Discussion

JourFixe, ILIAS [jourfixe], May 08, 2017: We highly appreciate this feature suggestion and schedule it for 5.3. As mentioned above the UI element for the file upload should be the one implemented in DR 5.1 - Issue 07: File Input on smartphones and tablets. This change will affect all file upload elements in ILIAS.

Schmid, Fabian [fschmid] 2017-08-09: The current state of discussion will be reflected in the FR DR 5.1 - Issue 07: File Input on smartphones and tablets.

8 Implementation

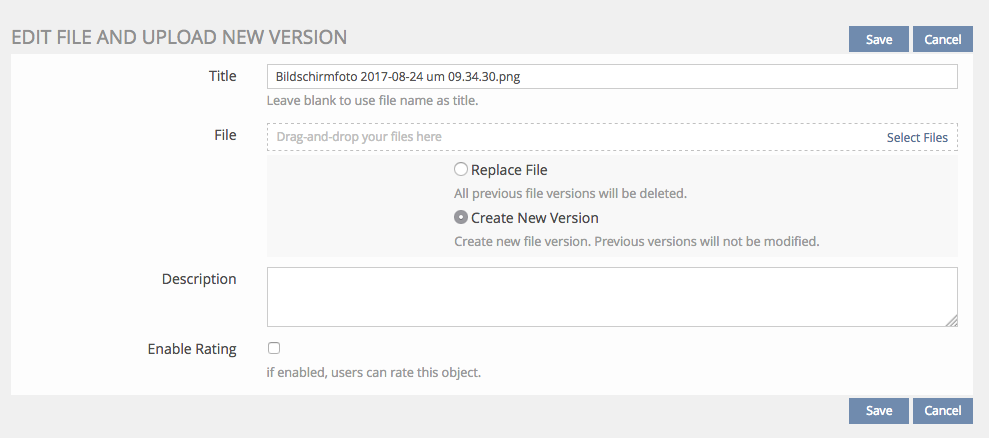

The Implementation uses the ilFileStandardDropzoneInputGUI wich itself uses the Drozones from the UI-Service:

A ilFileStandardDropzoneInputGUI is used in a (legacy) Form to upload Files using the Dropzone of the UI-Framework introduced with ILIAS 5.3. In some cases this can be used as a Drop-In-Replacement of the ilFileInputGUI, but check your usecase after. If you need an example how to use it, see e.g. in UI/examples/Dropzone/File/Standard/with_usage_in_legacy_form.php

Why make it a Drop-In-Replacement and not just replace ilFileInputGUI?
- There are a lot of different ways a form is handled in ILIAS, sometimes only checkInput is called, sometime developers send their own error-messages and so on. The ilFileStandardDropzoneInputGUI excepts some standard-behavior and would fail in some cases when just replacing the ilFileInputGUI
- There are a lot of options in ilFileInputGUI which would be difficult to reimplement in
ilFileStandardDropzoneInputGUI without discussing them with all devs.
- Beside ilFileInputGUI there are many other File-InputGUIs with different functionality. We should consolidate their use-cases first.

Attention: This ilFileStandardDropzoneInputGUI changes the behaviour of your form when used: The Form will be sent asynchronously due to limitations of dropped files (see https://stackoverflow.com/questions/1017224/dynamically-set-value-of-a-file-input )

Test Cases

Test cases completed at {date} by {user}

• C1910: Neue Version hochladen

Approval

Approved at 2017-08-23 by Samoila, Oliver [oliver.samoila].
