Feature Wiki

Information about planned and released features

Tabs

Export Submissions along with Peer Feedback

Page Overview

1 Initial Problem
2 Conceptual Summary
3 User Interface Modifications
- 3.1 List of Affected Views
- 3.2 User Interface Details
4 Technical Information
5 Contact
6 Funding
7 Discussion
8 Implementation

1 Initial Problem

Tutors cannot export feedback that was given in an assignement with peerfeedback. Downloading an export file would be extremely helpful in

preparing a discussion about the quality of submissions
including the quality of the Peerfeedback in grading the assignment (would be done outside of the system).
statistically processing the feedback provided (would be done outside of the system).

Tutors need an export that is optimized for statistcal processing is not neccessarily easy to read for humans.

Tutor Views in 5.3

Tutor accesses Peer Feedback given to a specific participant

2 Conceptual Summary

1. Downloading Submissions of an assignment of the type "Upload", "Portfolio" and "Blog" that has no peer feedback

Stays as it is

2. Downloading Submissions of an assignment of the type "Text"

Excel sheet comprising all submission texts

3. Downloading Submissions and Feedback for "Upload", "Portfolio" and "Blog" should comprise

zip file comprising all submissions
Folder comprising all feedback files (if applicable)
Excel sheet with hyperlinks to submission files and to feedback-files (if applicable)

4. Downloading Submissions and Feedback for "Text" should comprise

Folder comprising all feedback files (if applicable)
Excel sheet comprising all submissions with hyperlinks to submission files and to feedback-files (if applicable)

If the criteria catalogue has a start rating the number of starts should be given as a digit in the export file.

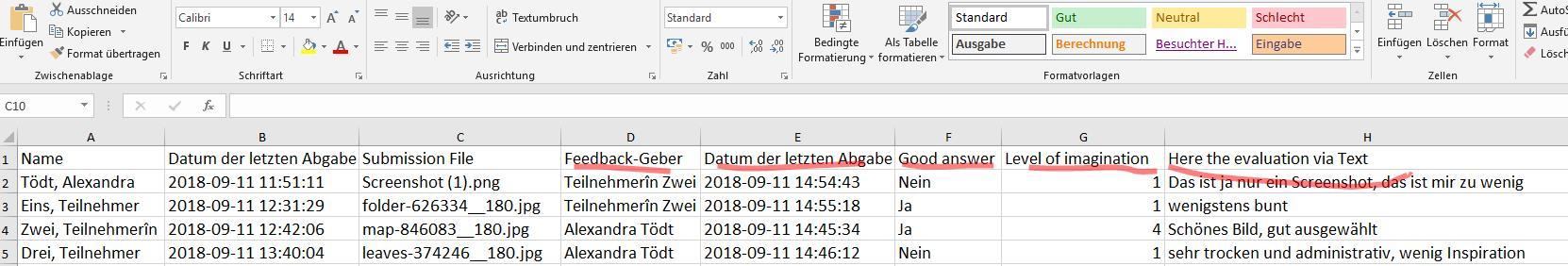

Mock-Up Export Files

Subtabs with Export

The export file are prepared should be available in the sub-tabs

Assignment View > Export File name = Assignment Titel
Participant View > Export File name = Participant Name

No "Submission and Feedback"-Download will be available in the subtab Grades View.
The export file should be available for the types of assignment:

Type of Assignment	Export of Submissions	Export of Submissions and Peer Feedback
Upload	Download Submissions >> 1	Download Submissions >> 3
Team Upload	Download Submissions >> 1	No Peer Feedback in Team Upload
Text	Download Submissions >> 2	Download Submissions >> 4 and Export >> 4
Blog	Download Submissions >> 1	Download Submissions >> 3
Portfolio	Download Submissions >> 1	ownload Submissions >> 3

3 User Interface Modifications

3.1 List of Affected Views

Exercise > Assignment View
Execise > Participant View

3.2 User Interface Details

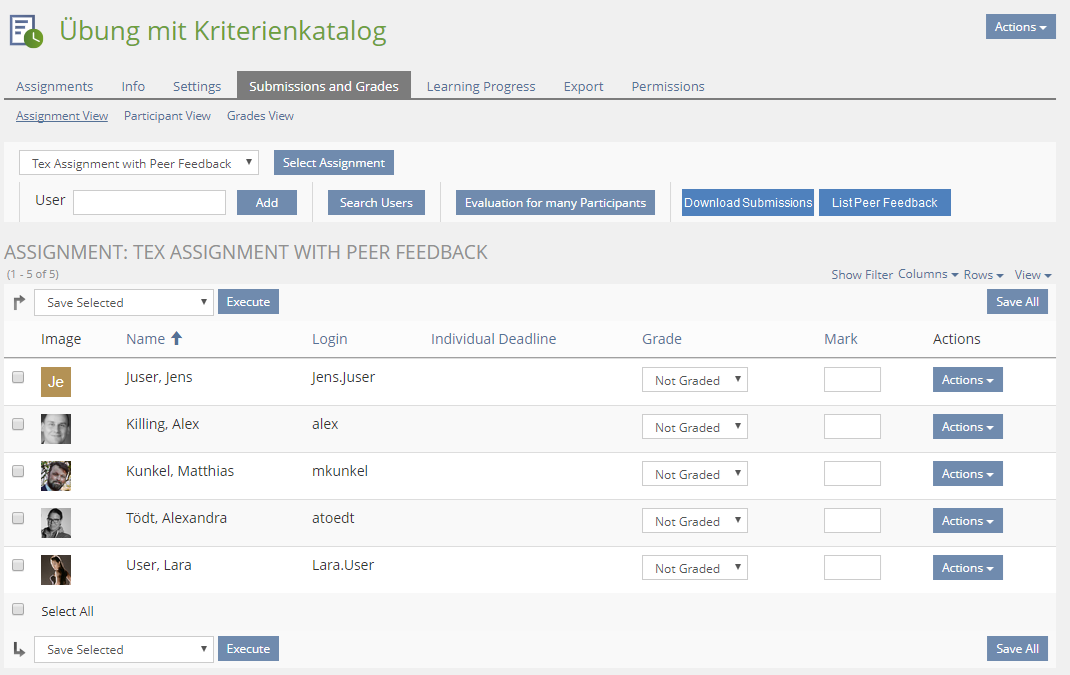

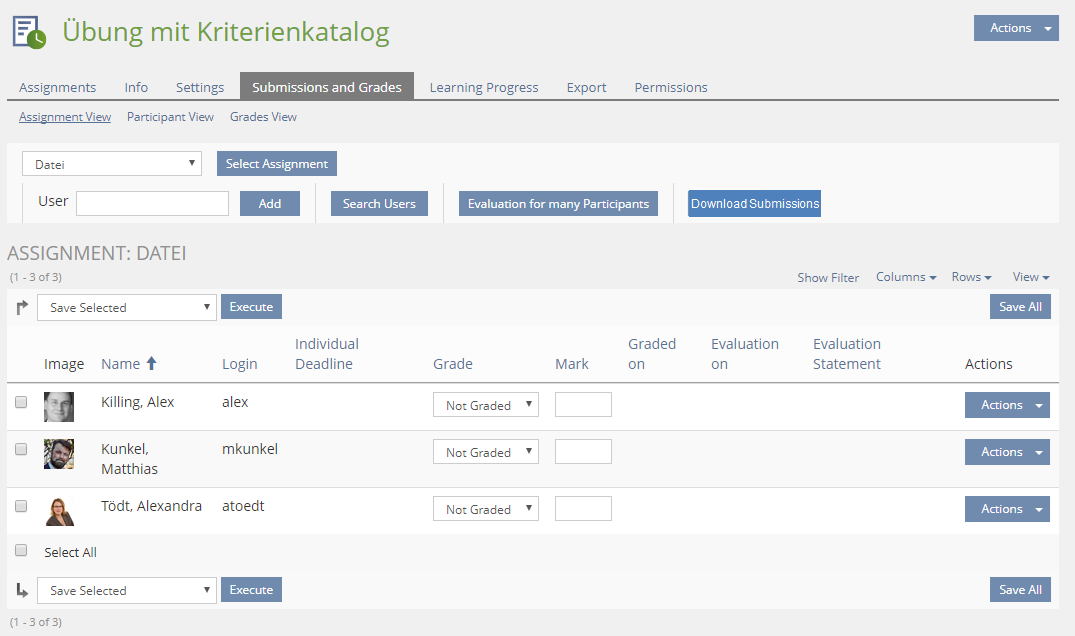

For Assignment Types "Upload", "Portfolio" and "Blog"

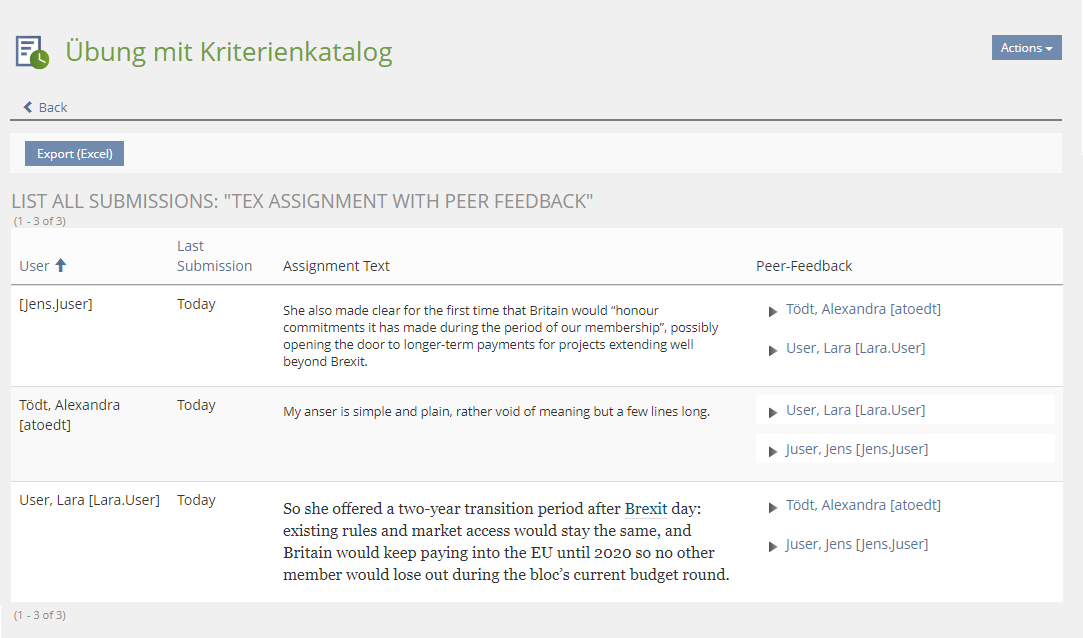

Download from List in Assignment Type "Text"

4 Technical Information

Killing, Alexander [alex], 11 Oct 2017: Not sure, if links to files are supported in PHPExcel this way. And the toolbar presentation is getting uglier with each button being added.

5 Contact

Author of the Request:
Maintainer: Killing, Alexander [alex]
Implementation of the feature is done by: Yet to be determined

6 Funding

If you are interest in funding this feature, please add your name and institution to this list.

7 Discussion

Killing, Alexander [alex], 11 Oct 2017: I support this request in general.

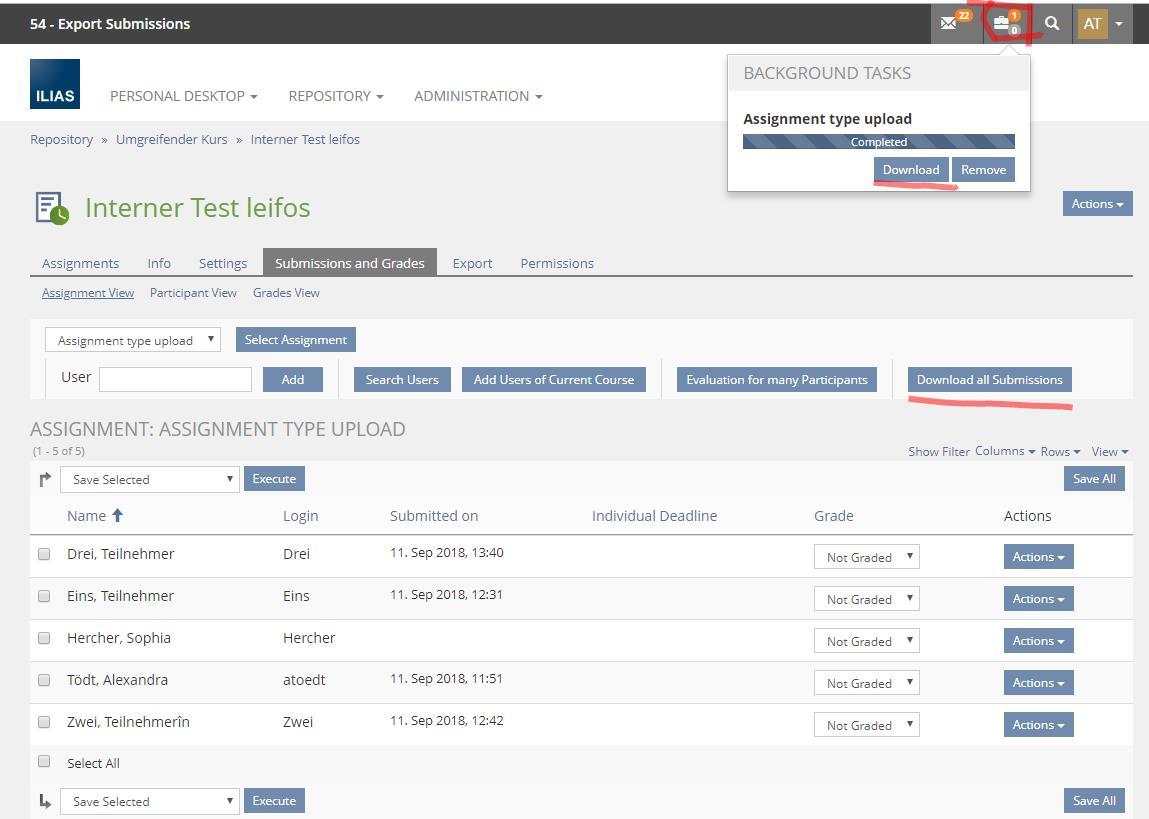

JourFixe, ILIAS [jourfixe], Oct 23, 2017: We highly appreciate this request and schedule the feature for 5.4. Alexander will check if PHPExcel allows such a kind of linking to external files. Additionally, we would have the file download as background task (new implementation). If possible, the tool bar should be 'beautified' and line breaking should be checked (see screenshot above).

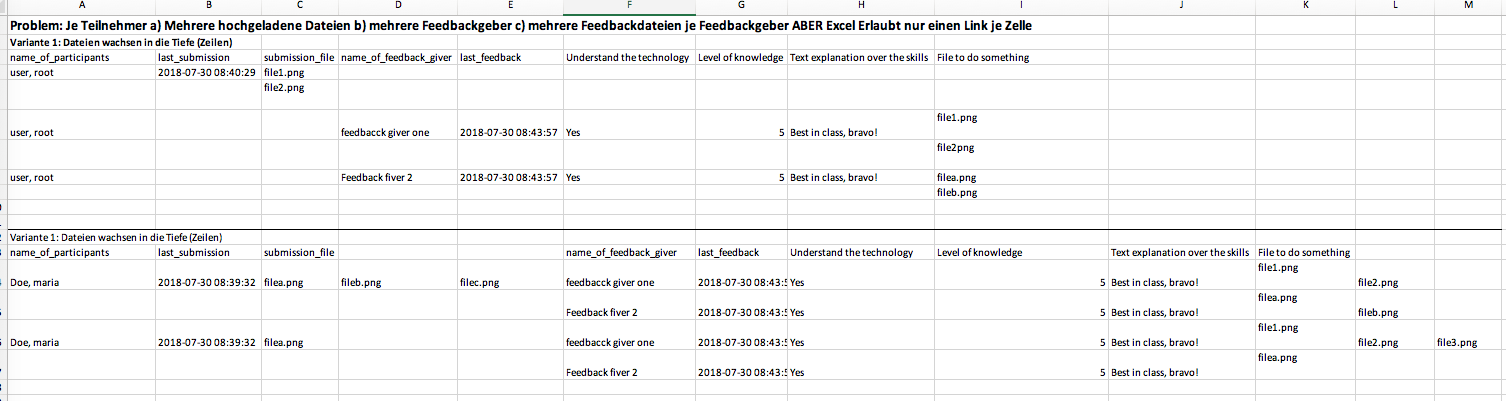

Killing, Alexander [alex], 30 Juli 2018: There is one limitation in Excel that makes the structure a little difficult. Excel allows only one link per cell. This means if we have multiple submission files and multiple feedback files per users, we need to occupy more rows or columns.

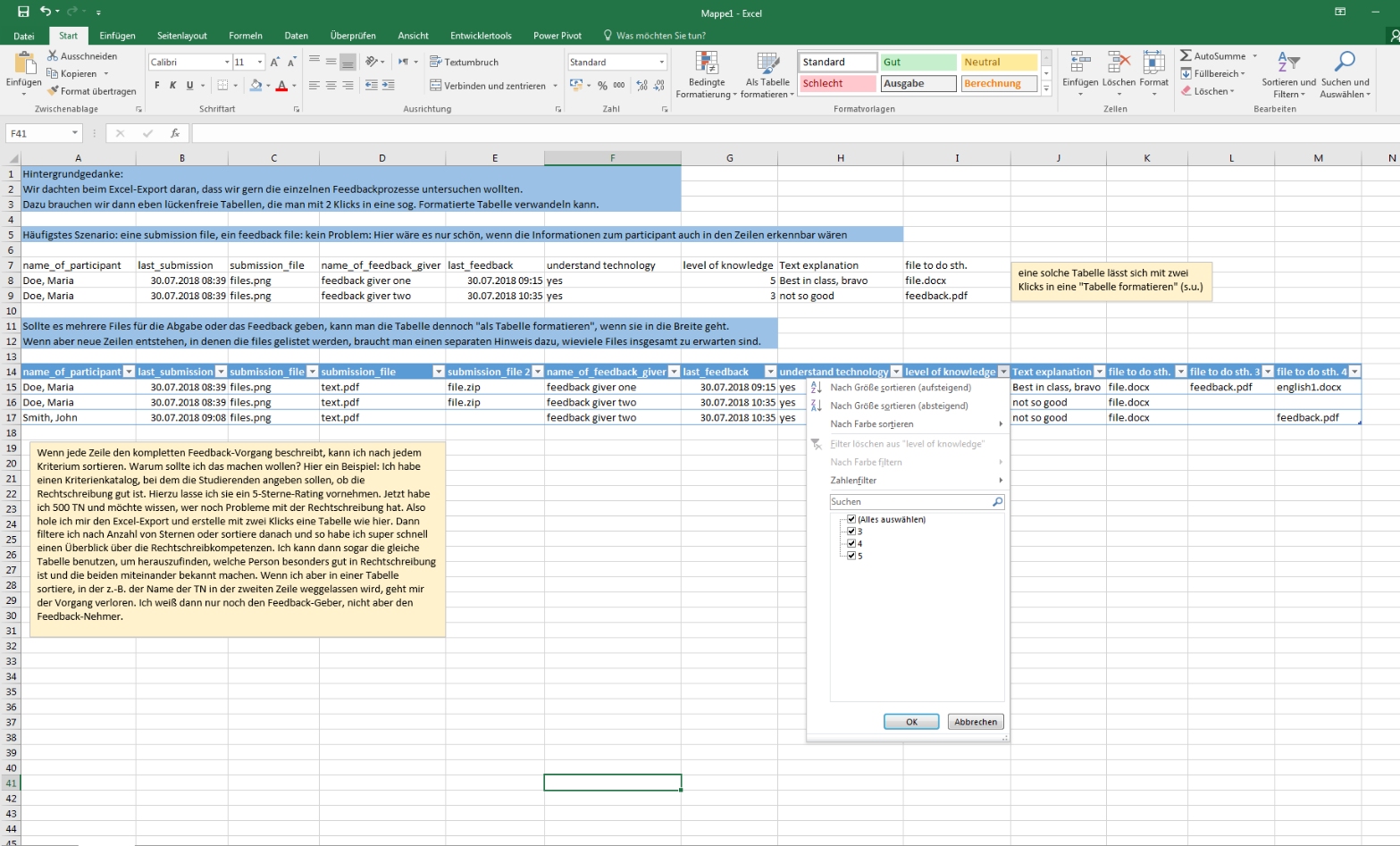

Busch, Sophia [SophiaBusch] am 30.07.18: Here is a view in which each feedback process has its own line in the table. That way, information about the participant won't be lost if we use the sorting function.

Sorting the table for a specific column of feedback should be possible. The newly sorted table should still present me with a data set of the participant including all submission files.

The above table with a lot more comments and explanations.

JourFixe, ILIAS [jourfixe], 30 JUL 2018 : We discussed the several options (see screenshots above) and prefer solution three offered by Sophia Busch (vertical extension of additional cells for files and redundant filling of cells to support sorting etc.).
